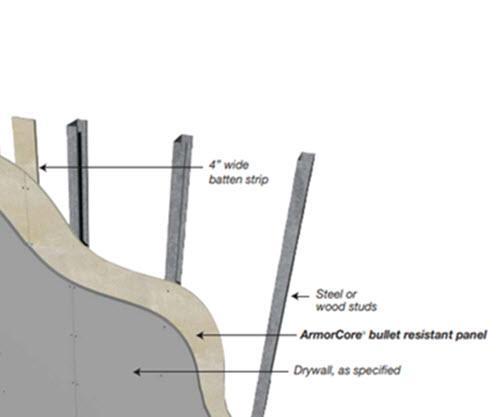

For typical wall and millwork installations, a 4” wide batten strip of the same level material should be specified at the butt-joints to provide a minimal 2” overlap from one panel to the next, or each side of the joint.

The ArmorCore® batten strips can be attached directly to the panels and should be used where any vertical or horizontal joints occur. Battens are not required where a 90 degree corner occurs, in which case a panel should simply overlap to the next panel at the corner.

Performance Level

• UL752 Standard for Bullet Resisting Equipment – Level 4 Paragraph 4.6
• One-Hour Fire Rating Per ASTM E119-98
• ASTM F1233-98 Standard Test Method for Forced Entry Testing of Materials/Assemblies
• ASTM E 90-97, E 413-87, E 13320-90 Classifications for Sound Transmission Loss

Ammunition Tested

• 180 grain (11.7 g) .30 caliber rifle lead core soft point, minimum velocity of 2540 fps
