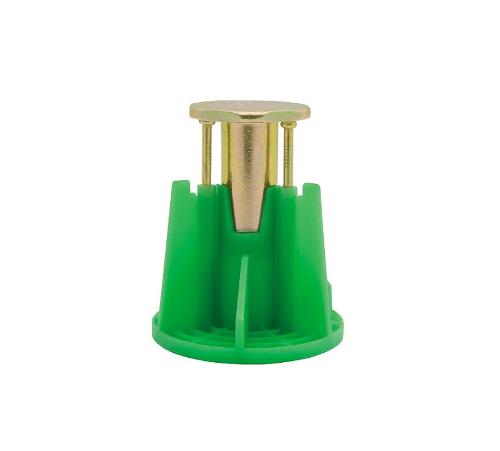

Wood-Knocker II+ and Pan-Knocker II+ concrete inserts are installed onto forms used to support newly poured concrete floor slabs, roof slabs or walls. The concrete inserts are specifically designed to provide hanger attachments for mechanical, electrical, plumbing (MEP) and fire protection. When the forms are stripped, the color-coded flange is visibly embedded in the concrete surface. The inserts allow the attachment of steel threaded rod or threaded bolts in sizes ranging from 1/4" to 3/4" in diameter, including a 1/4-3/8" and 3/8-1/2" and 1/4-3/8-1/2" multi version. The hex impact plate offers resistance to rotation within the concrete as a steel threaded rod or threaded bolt is being installed.

Features

• Fast and simple to install, low installed cost
• Color coded by size for simple identification
• Wood-Knocker II+ and Pan-Knocker II+ can be installed in form pours only 3.5" thick
• Hex head does not rotate when set
• Insert design allows for full thread engagement
• Suitable for seismic and wind loading

100 pcs/ctn
